Dongguan large food factory material automation processing system


  Our factory is located in Chashan Industrial Park, Dongguan City, Guangdong Province, with two internationally advanced bread production lines and four cake production lines, with a production capacity of up to 300T per day. The main raw materials used in the production site are 3 powder raw materials and 7 fluid raw materials, including extremely sensitive yeast solution and fresh egg liquid.
  The automatic material handling system designed and installed by our company undertakes all matters such as reception, storage, screening, filtration, transportation and measurement of 10 kinds of raw materials. The system can also control the temperature of related materials, and carry out statistics and analysis on the use amount of each production and the total amount.
  Native food Pneumatic conveying system It can be divided into powder raw material processing module and fluid raw material processing module, of which powder raw material processing module includes: 1 manual feeding station, 1 tank truck feeding station, 3 outdoor large storage tanks, 2 transfer tanks, 7 weighing hoppers and 3 online screening machines, 2 positive pressure powder transport pipelines and 2 negative pressure powder transport pipelines. The fluid raw material handling module includes: 3 outdoor fluid storage tanks, 18 indoor fluid allocation storage tanks, and 10 fluid pipelines.
  This super automatic processing system handles 3 kinds of powder raw materials and 7 kinds of fluid raw materials, accounting for 81.3% of the total material used in the production base, and is equipped with 32 sets of CIP system and constant temperature system, including extremely sensitive yeast solution and fresh egg solution.

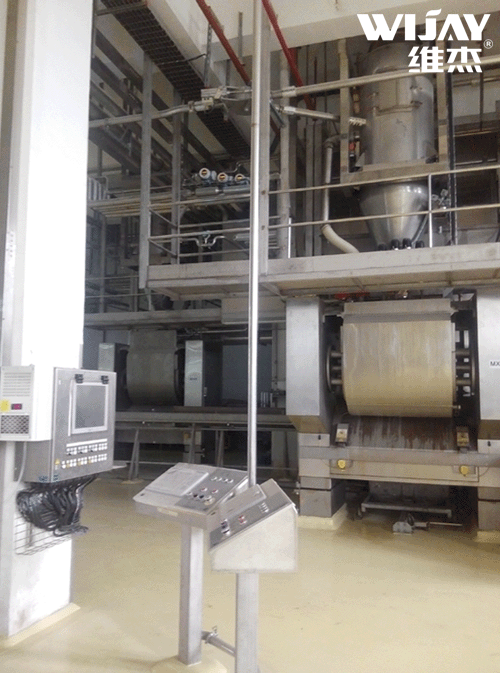

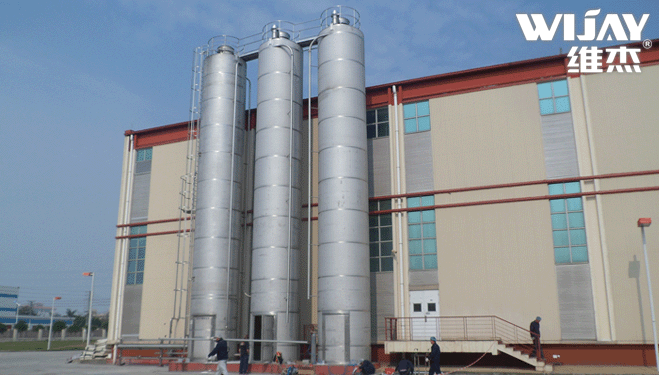

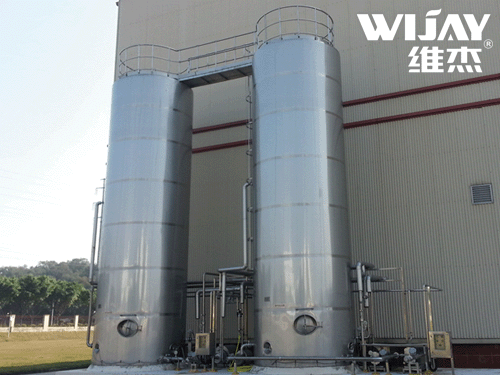

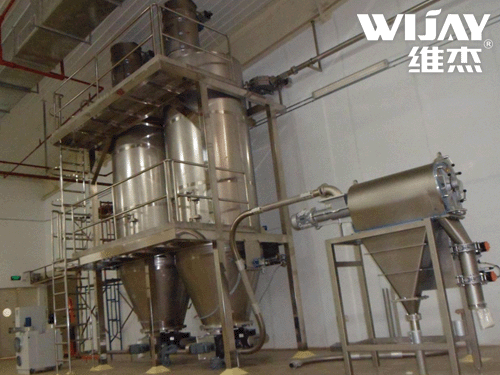

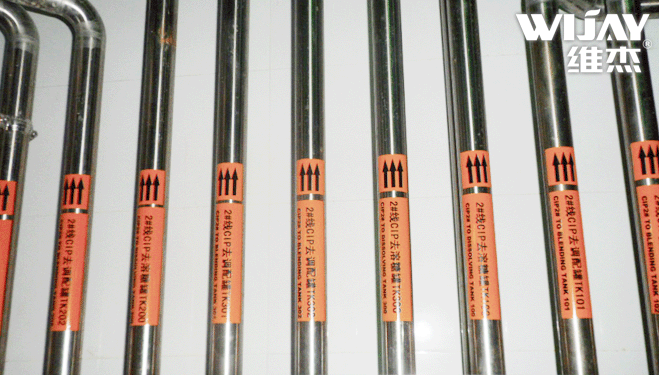

  Site details:

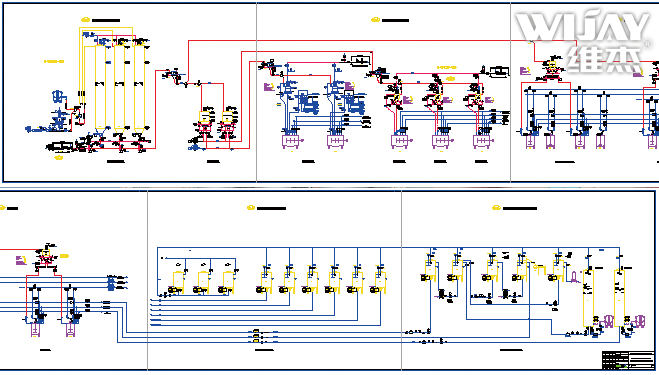

  System flow chart:
