Introduction to positive pressure pneumatic conveying (thin phase) system

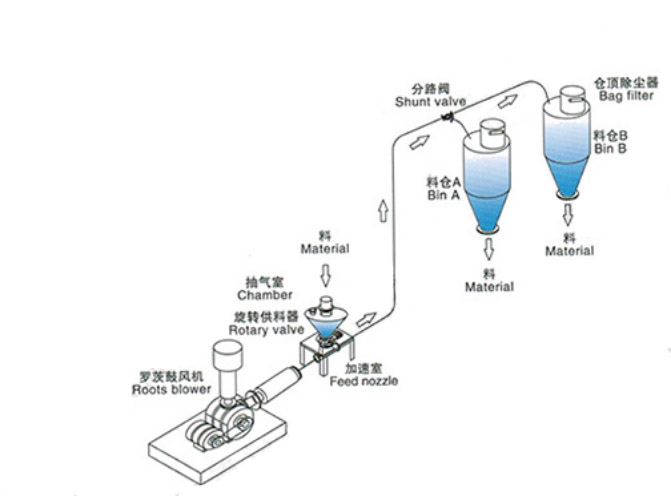

In this system, the positive pressure Roots fan is generally used as the air source, and the rotating blanking valve (fan off) is the continuous feeding device. The material enters the rotating blanking valve into the conveying pipeline through the feeding station, mixes with the high-speed pneumatic body and then transmits to the next process receiving bin (metering, mixing, or use point), and the filtered gas is discharged into the atmosphere through the material gas separation device (dust collector). It is suitable for projects with long conveying distance and large conveying capacity.
System characteristics
1.The conveying process is stable, and it is easy to achieve dispersed conveying from one place to many places.
2, the pipeline is simple and clean, high efficiency, and the pipeline is positive pressure, even if the pipeline leakage will not cause pollution to the material, and the later production capacity upgrade is convenient.
